Tempest Filter

The Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.

Innovative Pond Filter with UVC


Patented Design

The Surge filter is easy to install and is simple and quick to clean, by way of a unique, patented air syphon design (UK Patent No. GB2550495B).

Key Features

Keep your hands dry - Foam free, easy self-cleaning technology.

More time to enjoy your pond - Reduces filter cleaning and maintenance.

Crystal clear and healthy water - Enhanced filtration with K+Media and integrated UVC.

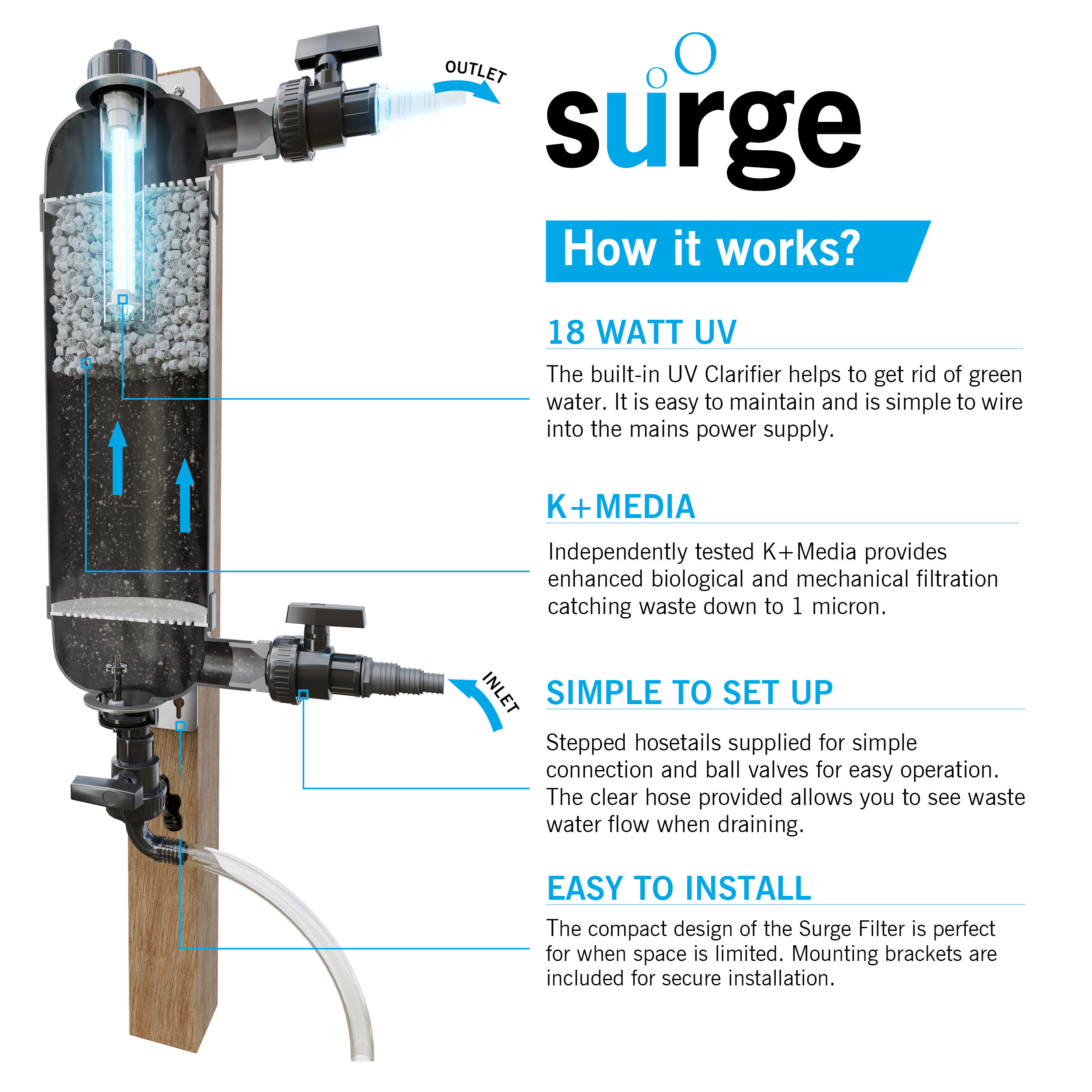

How it works?

As pond water is pumped up through the Surge Filter the K+Media becomes a mechanical barrier that traps debris as it flows through. Waste particles remain trapped within the K+Media until they are dislodged and flushed away during the patented Air Clean Technology cleaning process.

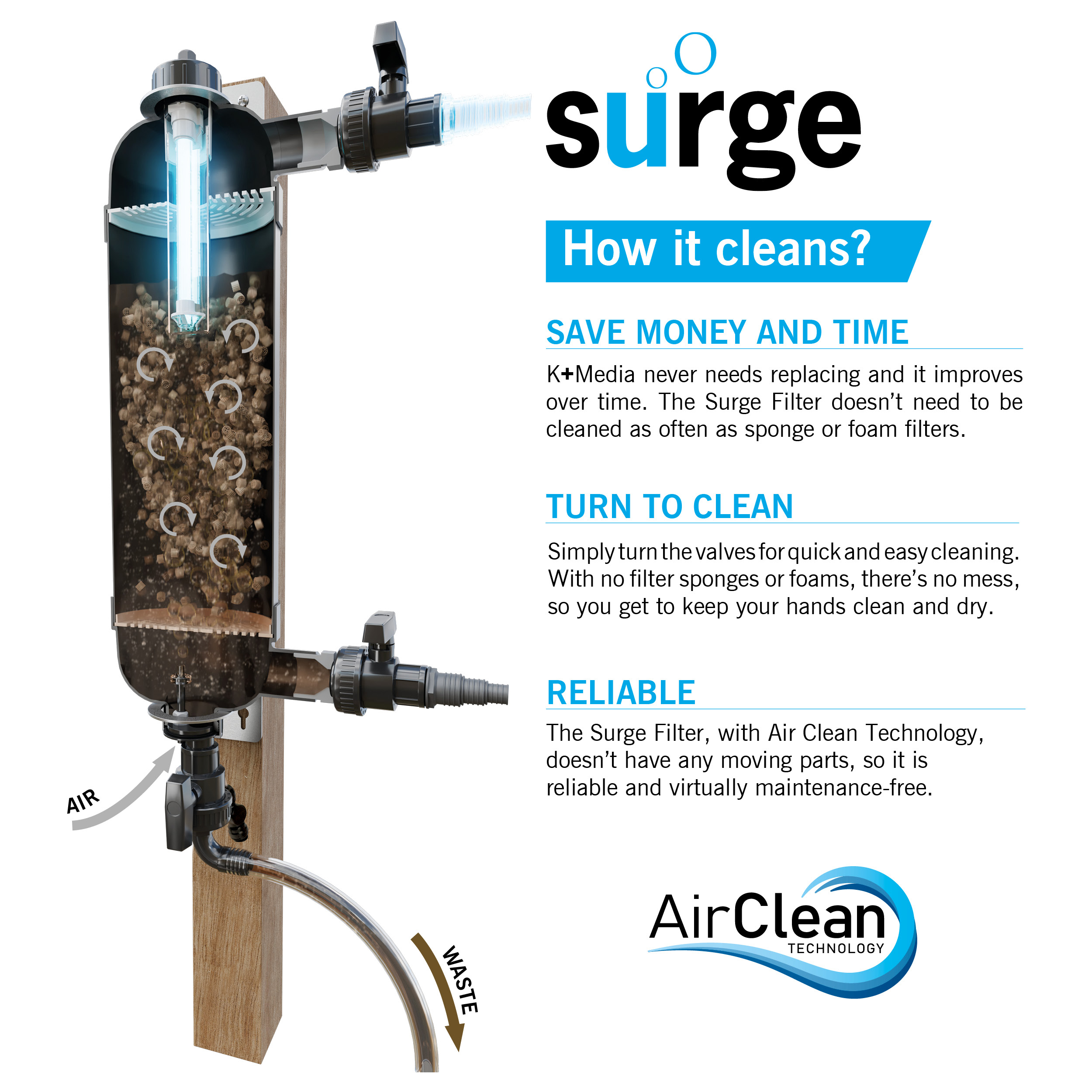

How it cleans?

Air Clean Technology uses open cell K+Media and air to clean the filter providing a low energy and cost-effective solution. With the pump off, ball valves closed, and waste valve open, air is drawn into the filter. As air and water mix inside the filter, the media starts to move chaotically, dislodging the trapped waste. Dirty water then exits the bottom of the filter via the waste line, leaving clean media.


Specifications





UK

EU

US

MAX POND SIZE

5,000 Litres

1,100 Gallons

1,320 US Gallons

INLET

¾”, 1”, 1¼”

20mm, 25mm, 32mm

¾”, 1”, 1¼”

OUTLET

¾”, 1”, 1¼”

20mm, 25mm, 32mm

¾”, 1”, 1¼”

WASTE

1”

25mm

1”

MAX FLOW RATE

3,500 lph

771 gph

925 US gph

OPTIMUM FLOW RATE

2,500 lph

550 gph

660 US gph

K+MEDIA SUPPLIED

4.5 Litres

4.5 Litres4.5 Litres
WATER VOLUME IN FILTER

19 Litres

4.2 Gallons

5 US Gallons





Dimensions


Installing the Surge Filter

The Surge Filter is easy to install and is simple and quick to clean, by way of Evolution Aqua’s patented Air Clean Technology. This unique air syphon design allows air to be drawn into the filter as it empties which causes the water to agitate, effectively cleaning the K+Media. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.
