The automatic choice for your garden pond

The EazyPod Automatic is a self cleaning, automatic mechanical and biological filter
system for garden ponds up to 10,000 litres.
A control box fitted to the side of the filter contains an adjustable timer that initiates a cleaning cycle automatically - even when you’re not there!

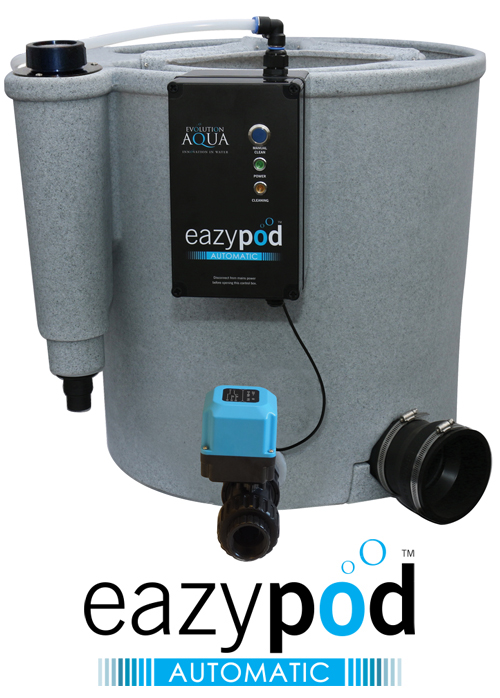

EazyPod Automatic
EazyPod Automatic Complete

Overview

Inside the control box, the electronic connector blocks control the automated waste valve,
along with your circulating pump (not included). It even houses an
air pump that kicks in automatically to clean the
K1 Micro media.
Crystal clear, healthy water is achieved by the filter which is powered by a static bed of K1
Micro, which also provides enhanced biological benefits too.

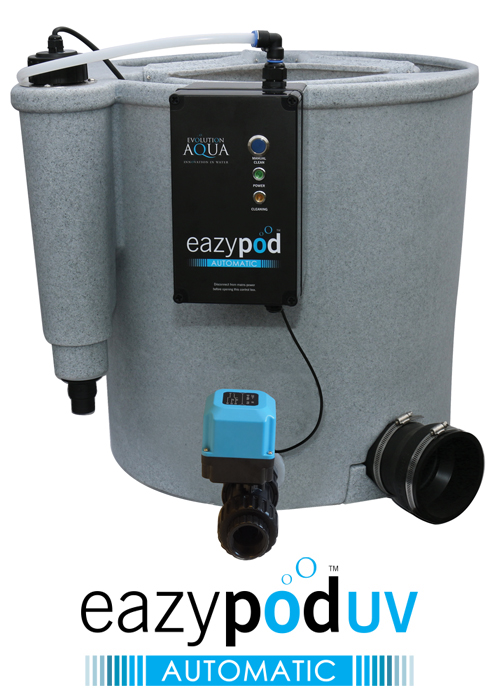

The Eazypod UV Automatic also features an integrated 18 Watt UVC built in to the inlet
section of the filter, helping to clear green water, making this a fully automatic self
cleaning filter.

Useful Information

FAQs: provide answers to the most frequently asked questions. Start typing the product name + your questions in the search box. Or click here to access the FAQs databse.

Pond Brochure

Pond Brochure

EazyPod Auto Manual

EazyPod Auto Manual

Nexus Spares

EazyPod Spares

EazyPod Automatic Spare Parts List

Dealer Locator

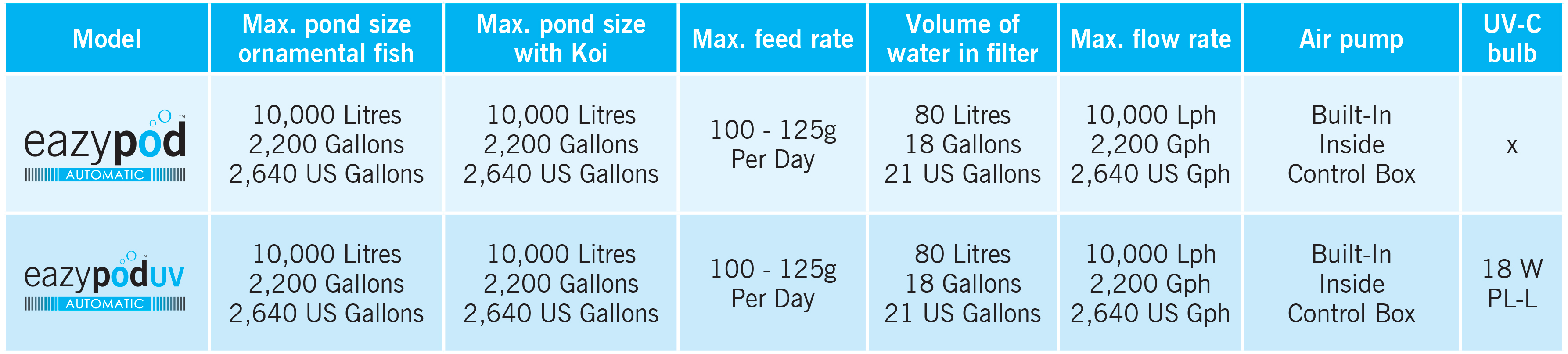

Specifications

ModelMax Pond Size Ornamental FishMax Pond Size with KoiMax Feed RateVolume of water in filterRecommended flow rateRecommended air pumpUV-C bulb
EazyPod10,000 Litres
2,200 UK gallons
2,640 US gallons
10,000 Litres
2,200 Gallons
2,640 US Gallons
100 - 125g Per Day80 Litres
18 Gallons
21 US Gallons
5,000 Lph
1,100 Gph
1,320 US Gph
Built-In Inside Control Boxx
EazyPod10,000 Litres
2,200 UK gallons
2,640 US gallons
10,000 Litres
2,200 Gallons
2,640 US Gallons
100 - 125g Per Day80 Litres
18 Gallons
21 US Gallons
5,000 Lph
1,100 Gph
1,320 US Gph
Built-In Inside Control Box18W PL-L

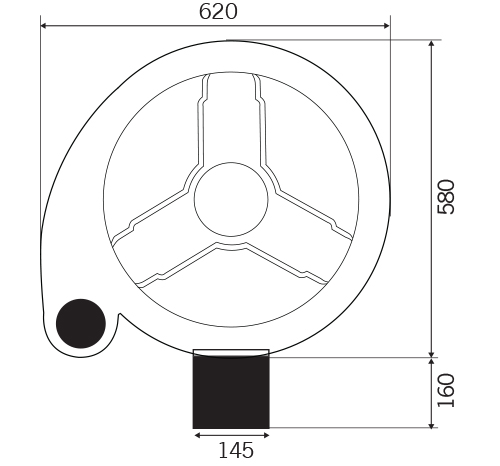

EazyPod auto Top Image

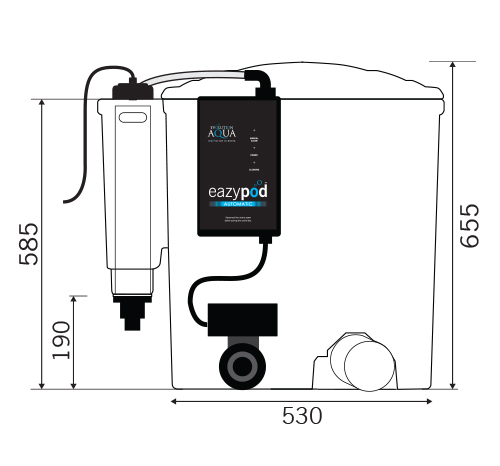

Dimensions

How the EazyPod Automatic works

The concept of the EazyPod Automatic is simple and yet innovative. Water enters via the inlet and
passes over an 18 watt UV Clarifying bulb (on UV versions), helping to kill any single celled algae
in the water.

The water then enters the outer chamber, which runs around the entire circumference of the
EazyPod. Between the outer chamber and the inner chamber, there is a stainless steel perforated
screen. These perforations are situated in the lower half of the screen and around its entire face.
This means that when the water passes from the outer to inner chamber,
a downward and upward flow is created. This causes many of the larger solids to settle in the base
of the outer chamber, due to the force of gravity.

The size of the perforations will not allow large mechanical waste to enter the inner chamber,
thus acting as a first stage mechanical filter. The inner chamber holds 18 litres of static K1 Micro
media. As the water enters the inner chamber, the fine smaller solids become entrapped in the K1
Micro. After passing through the K1 Micro, the clean water then rises and overflows into the inner
return pipe. From here it returns to the pond via the return outlet.

The EazyPod Automatic filtration system gives water quality and clarity that surpasses all
expectations. The nature and volume of the K1 Micro means, that when static, apart from being
a very efficient mechanical filter, there is more than enough surface area for beneficial bacteria to
colonise. Therefore on a smaller pond, the EazyPod Automatic is an excellent complete filter.


Installing the EazyPod Automatic

PUMP-FED INSTALLATION ONLY

By this we mean that if your pump is going to be used to supply the water to the filter, and the
filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large
diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump).



EazyPod Auto Installation

Cleaning Cycle

The K1 Micro is cleaned by the integrated air pump located inside the control box, that is connected to the air line in the EazyPod Automatic, which in turn goes to an air ring in the base of the inner chamber. The air ring has small holes in it which causes the K1 Micro to move and therefore clean itself.
During the cleaning cycle, the finer particles escape into chamber from the K1 Micro. This waste water will be automatically dumped via a 1 inch motorised ball valve.

Ball valve

Cleaning is fully automated on the EazyPod Automatic, and is controlled by a built-in timer, which is factory set at one clean every 3 days, however, this is easily adjustable to fit in with your pond requirements. The EazyPod Automatic will run a cleaning cycle which lasts approximately 6 and a half minutes.

Eazypod auto control Box
K+ EazyPod Automatic FAQs
The K1 Micro in the Nexus Eazy doesn’t move well during the cleaning cycle
The reasons for this could be one of the following: The air pump is not powerful enough (see Air Pump Recommendation on page 4) There isn’t enough water in the Nexus – check that you used the cleaning pipe to maintain the level on a pump fed system. Check all air fittings and air line for leaks...
Can an old EazyPod be adapted to take smaller K1 Micro?
Yes, 18 litres of K1 Micro can be used. No adaptations are necessary. K1 Micro offers increased surface area and may provide clearer water.
Can EazyPod be upgraded to automatic cleaning?
No, the EazyPod Automatic is configured differently and would have to be purchased separately.
Is EazyPod a complete filtration system? Will I need anything else?
EazyPod is a complete mechanical and biological filter, trapping debris and breaking down biological waste from fish. A basic EazyPod on its own is not supplied with a pump (to pump water to it from the pond,) or an airpump, to clean it. You’ll also need a separate UVC (like evoUV) to combat green water...
What is EazyPod Automatic?
EazyPod Automatic is an EazyPod which can automatically clean its own media. Available with or without UVC, EazyPod Automatic has a control box which can be set by the user to clean itself on a timer, as little or as often as they require. EazyPod Automatic has a built-in can clean when you’re not there...
Can EazyPod be run gravity-fed?
The EazyPod and EazyPod Air can be converted to gravity feed, there are instructions on how to do this in the EazyPod manual which can be downloaded here. The EazyPod Complete and Automatic EazyPods cannot be gravity fed.
Can EazyPod Automatic be gravity-fed?
No, it’s not possible to run EazyPod Automatic as a gravity fed filter. The Nexus 220 and 320 can be gravity fed with the addition of the Automatic upgrade
Media is escaping and being discharge to waste when cleaning my Eazypod
This can happen if the outer steel mesh is slightly out of position, this sometimes happens during transit, remove all of the media from the biological chamber (this will stop any media becoming trapped when you tap the mesh back into place), with a large flat-headed screwdriver and hammer, gently tap...
I want to recess the EazyPod away from the pond. How do I do that?
EazyPod comes with a rubber connector which allows 4” rigid pipe to be fitted. Place the EazyPod where you want it away from the pond (the base of a pump-fed EazyPod must always be above surface of pond level, gravity fed installations the EazyPod should be level with the pond) and then use 4” pipe ...
Can an EazyPod feed a waterfall?
Only if it is at the top, behind the waterfall. Water exits a pump-fed EazyPod via gravity. It cannot then travel up hill, as the EazyPod would flood. If the EazyPod is installed as a gravity-fed filter it can feed without any alterations.
What size pump do I need for an EazyPod?
EazyPods are suitable for ponds up 10,000 litres, and we recommend that a pond is turned over once every two hours. A 5000lph pump (like a Bermuda Filter Force 5000,) would be perfect.
How do I replace the waste ball valve on my EazyPod
If you have one of the Mk1 EazyPods with a ball valve, you will need to buy a Single Union Ball Valve and a EazyPod Tank Connector.
How can I extend the cleaning cycle from 6 minutes to up to 10 minutes on my Eazypod Auto?
You first need to remove cycle timer sticker and then increase the dial from 60 to 100 so that the cycle time would increase to 10 minutes from the original 6 minutes.
What are the air stones used for that come with an EazyPod Air / EazyPod Complete?
The air stones need to sit at the bottom of the pond to provide extra aeration. You use the supplied manifold to divert the air from the air pump, so air can be used to clean the EazyPod and also to aerate the pond via the air stones. This illustration shows a common pump fed set up:
What volume of water is send to waste in my Eazypod during a cleaning cycle?
Approx 80L of water is send to waste during each cleaning cycle.Please see the manual for more information.
I want to install the EazyPod on a gravity fed system, what height will the water level be?
The measurement on gravity fed Eazypods will be 555mm from the floor to the water level inside the EazyPod. Remember to remove the black inlet pipe and make the necessary changes to the filter as shown in the instructions, as the EazyPod will arrive ready for PumpFed installations
My K1 Micro stays on the surface of the water in my Eazypod and will not sink
The K1 Micro when brand new is buoyant and will want to float on the surface of the water. This is perfectly normal. As soon as fish have been added to the pond it takes the K1 Micro approximately 24 to 48 hours to absorb the water and become semibuoyant in the EazyPod.
The K1 Micro doesn’t move well during the cleaning cycle
The air pump is either not powerful enough or there isn’t enough water in the EazyPod. Check all air fittings and line for leaks. Make sure you haven’t inadvertently added more K1 Micro than the 18 Litres.
The pond gets dirty after cleaning my Eazypod
Check that you have turned your circulating pump off, so that the dirt in the K1 Micro hasn’t returned to the pond.If the K1 Micro appears to bubble (boil) above the outlet water level during cleaning, some dirt may return back to the pond. This is not an issue.Please ensure that the EazyPod has gone...
Too much maintenance, poor clarity, or EazyPod overflowing
Make sure that you haven’t exceeded the maximum flow rate. Please ensure that the EazyPod has gone through a minimum of 2 to 3 cleaning cycles.
There is no power/does not initiate cleaning mode to my Eazypod automatic control box.
Check the wiring is correctly installed. Seek advice from a suitably qualified electrician if in doubt. Check the mains connection to the control box. Check the connection at the mains power and check the wiring inside the control box. Seek advice from a suitably qualified electrician if in doubt...
EazyPod Automatic does not drain to waste
Check that the 1” ball valve on the EazyPod Automatic is in an open position. (You can check this by removing the union end from the waste valve) Is cleaning cycle fully operational. From initiating a cleaning cycle it will take 3 to 4 minutes before the automated waste valve opens. Check automated...
EazyPod Automatic does not close waste valve
You will find out that the circulation pump will not switch on and the green and amber light are both illuminated. Remove the unions from the waste valve and check for any blockages. Check the fuse inside the control box. This is located in the hinged compartment on the left hand side of the pump...
Can you retro fit an Eazypod?
No, it is not possible to retrofit an Eazypod. You can however retrofit a Nexus.
Does the UV need to be switched off on my Eazypod during the cleaning cycle?
The UV stays on throughout the process and no harm comes to the UV or the unit.
Why is the media in my Eazypod sitting high up and water is flowing down the overflow channels?
This problem occurs when the media is very blocked and the water can’t flow through it easily. The filter needs to be cleaned, preferably at least twice to flush the dirt out. This problem may occur if the filter hasn’t been cleaned for a while or a Blanketweed treatment has been carried out and the...
How can I extend the draining time of my Eazypod Automatic?
To extend the time that the waste valve is open you can change the setting on one of dials on the timers inside the auto box. The bottom dial on the right hand timer is set at 30%, if you change that dial to 20% or 10% the waste valve will open sooner in the cycle and stay open longer.
What is the purpose of the black inlet pipe on an Eazypod?
The pipe in the inlet performs 2 functions – It allows the water to remain at the correct height for cleaning when the pump is switched off.  Without this, the water would empty back into the pond, and there wouldn’t be enough water left in the filter to allow the media to move. It acts as ...
How do I change the fuse on an Eazypod Automatic?
Watch the step by step video below to learn how to change the fuse on an Eazypod Automatic.
How do I change the relay on an Automatic Filter?
<p>Watch the step by step video below to learn how to change the relay on an automatic filter.</p><p><iframe title="YouTube video player" src="https://www.youtube.com/embed/bTEkdTVnVnQ" width="560" height="315" frameborder="0"></iframe>
Learn to diagnose Eazypod Automatic Waste Valve Relay Faults
Understanding the Eazypod Automatic Waste Valve Relay (In real time)
Learn to understand the Eazypod Automatic Control Box (In Real Time)
Understanding the Eazypod Automatic Control Box (In Real Time)
