Advanced Filtration with Titanium-Enhanced UV Technology

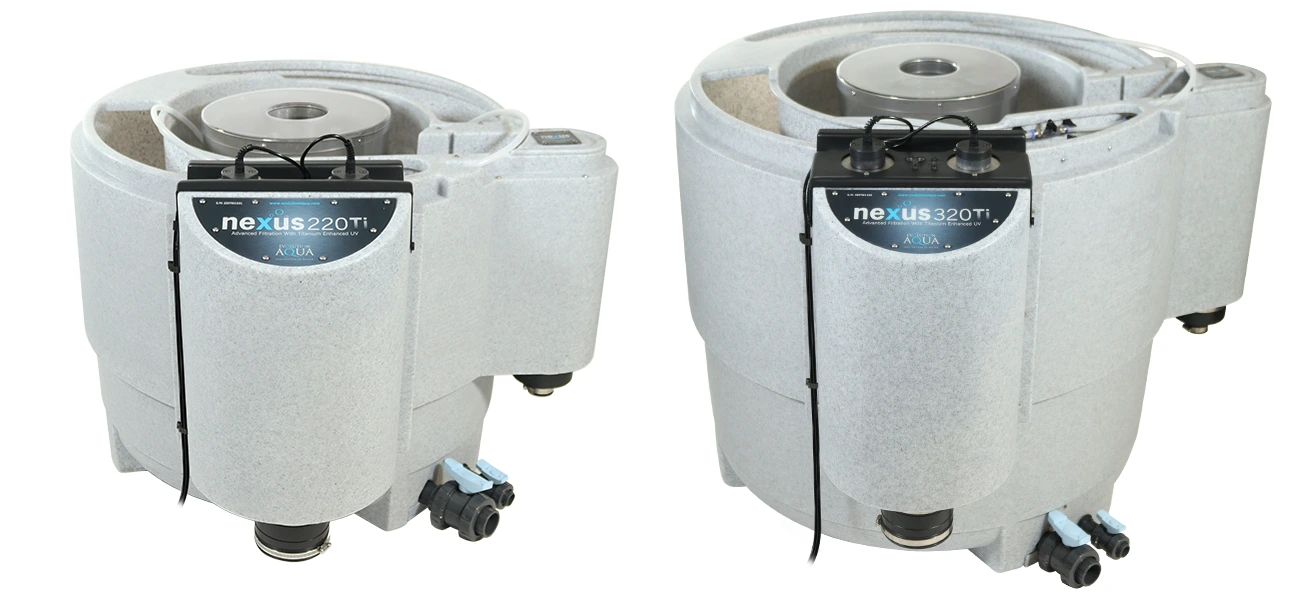

The new NexusTi combines Evolution Aqua’s trusted Nexus filtration technology with built-in Titanium-Enhanced UV Clarifiers — delivering crystal-clear, healthy pond water with maximum efficiency and minimal setup. Unlike traditional systems, the UV units are integrated directly into the clean water outlet of the Nexus filter, ensuring optimal UV penetration and enhanced photocatalytic performance.
The result? A cleaner, clearer pond with fewer components, simpler plumbing, and less maintenance.
All-in-One Mechanical & Biological Filtration with Titanium UV-C
The NexusTi features Evolution Aqua’s proven mechanical and biological filtration process — combining solid waste removal and efficient biological conversion for perfect water balance. Everything you need for exceptional water clarity, in one smart unit.
The new Nexus+ filters are also supplied “auto ready”, with factory fitted fixings already in place, making it even easier to upgrade to the Nexus Automatic Cleaning System.

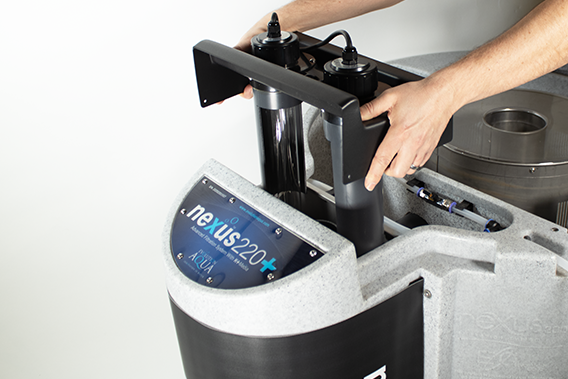

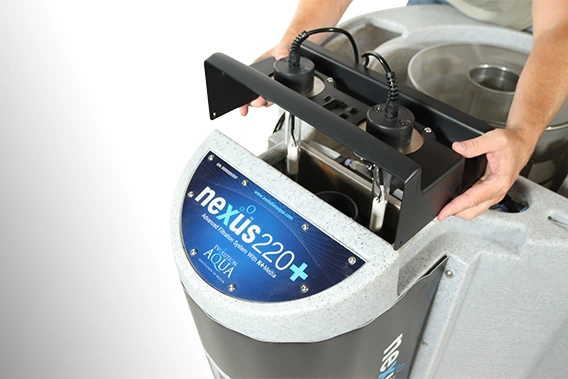

Bringing Titanium-Enhanced UV Performance to Existing Nexus Customers
Fast and easy to install, the Nexus Ti UV Upgrade Kit brings the power of Titanium-Enhanced UV technology to existing Nexus systems without the cost or disruption of a full system replacement. Designed for Nexus 220 and 320 filters (post-2006 models).
Watch our unboxing and set up videos: YouTube Playlist
Specifications
| NexusTi Model | Max Pond Size | Titanium Enhanced UV | Max Flow Rate | Water Volume | K1 Micro (Eazy) | K+Media (Bio) | Max K+ Capacity |
|---|---|---|---|---|---|---|---|
| 220 | 18,000 L 4,000 G | 2x 36W UVC | 10,000 lph 2,200 gph | 510 L 112 G | 18 L | 50 L | 150 L |
| 320 | 34,000 L 7,500 G | 2x 55W UVC | 13,000 lph 2,859 gph | 840 L 185 G | 20 L | 100 L | 300 L |
Smart Design - Maximum Performance

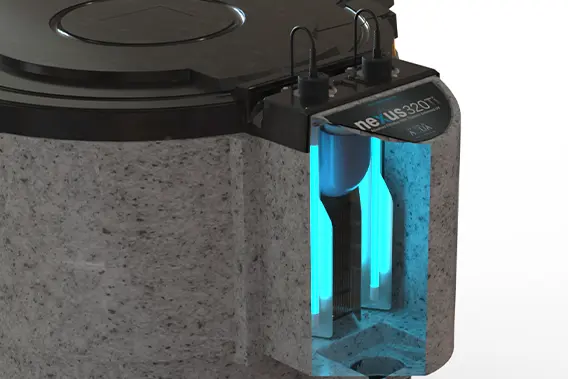

The clarifying chamber integrates Titanium-enhanced UV units to achieve optimal hydraulic performance balancing flow rate, contact time, and water clarity. This advanced design ensures superior UV transmission and faster elimination of green water compared to standard systems.
Clears Green Water Faster
Advanced UV technology removes algae up to 1.5× faster than standard systems, giving you cleaner, clearer pond water quickly while maintaining a healthy aquatic environment.

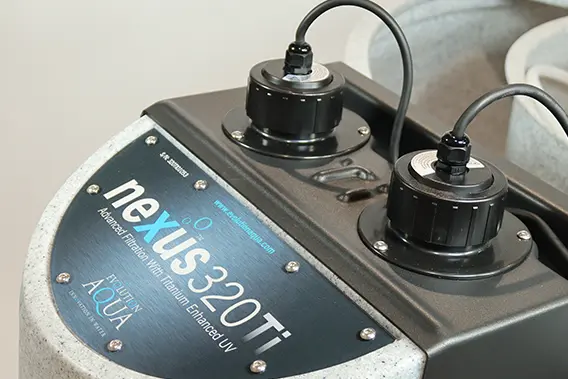

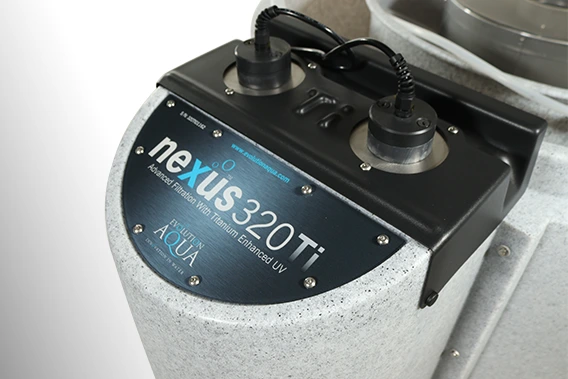

Significant Savings On Pipeworks & Fittings
Built-in UV units eliminate the need for separate plumbing and extra fittings, reducing installation costs, simplifying setup, and keeping your pond area neat and uncluttered.

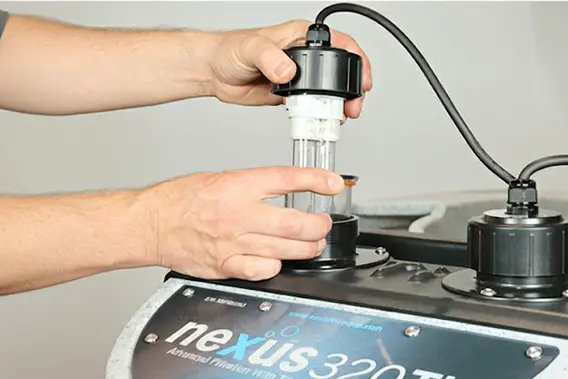

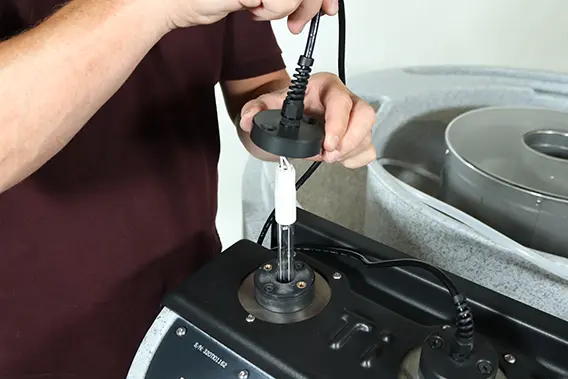

Fully Serviceable
Quick and easy maintenance: replace bulbs or quartz sleeves effortlessly, with all parts readily available from your local EA dealers. The UV units are designed for easy access, making cleaning, maintenance, and replacement simple and efficient.
Dimensions & Installation Diagrams
