As we all know, oxygen is vital to all aquatic inhabitants whether they are Koi, goldfish, tropical / marine fish or bacteria.
The EA Airpump range provides high performance diaphragm air pumps for all fishkeepers. The range was purposely developed for fishkeepers to deliver that essential element into their ponds - specifically air. EA Airpumps have been tested and proven to provide the highest output at any given depth, to be economical to run and to be totally reliable. Well engineered, robust and durable, every unit has thermal protection fitted as standard.
Useful Information
FAQs: provide answers to the most frequently asked questions. Start typing the product name + your questions in the search box. Or click here to access the FAQs databse.
Airpump Manual
Airpump Spares
Dealer Locator

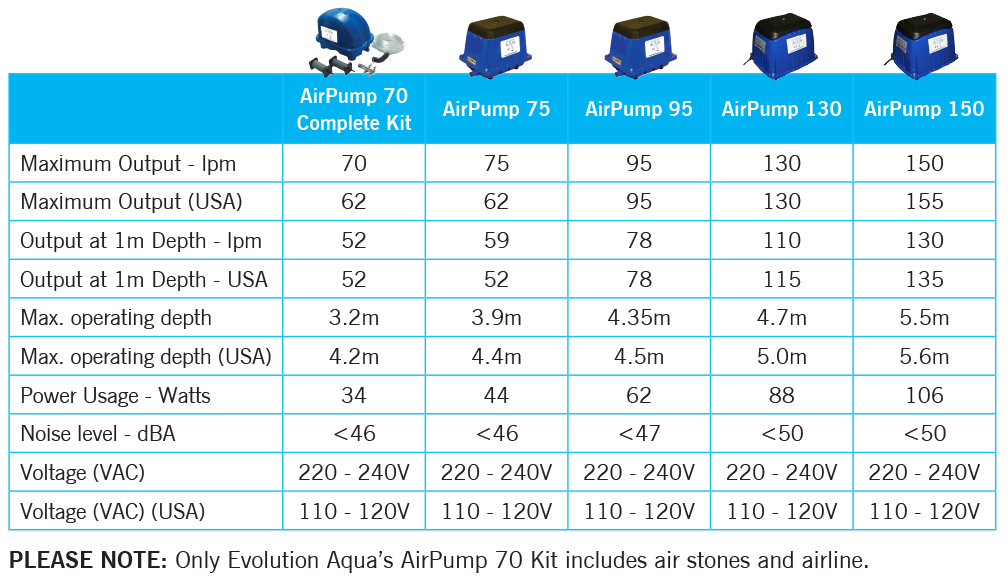

Specifications
Specification
AirPump 70 Complete Kit
AirPump 75
AirPump 95
AirPump 130
AirPump 150
Maximum Output lpm
70
75
95
130
150
Maximum Output (USA)
70
75
95
130
155
Output at 1m Depth - lpm
52
59
78
110
130
Output at 1m Depth - USA
52
52
78
115
135
Max. operating depth
3.2m
3.9m
4.35m
4.7m
5.5m
Max. operating depth (USA)
4.2m
4.4m
4.5m
5.0m
5.6m
Power Usage - Watts
34
44
62
88
106
Noise level - dBA
<46
<46
<47
<50
<50
Voltage (VAC)
220 - 240V
220 - 240V
220 - 240V
220 - 240V
220 - 240V
Voltage (VAC)
110 - 120V
110 - 120V
110 - 120V
110 - 120V
110 - 120V
Frequently Asked Questions
Airpump FAQs
Where do I place the airpump?
If the pump is situated below the water level, it must have a non-return valve fitted to stop water siphoning back into the pump if there is a power cut.
The air output has dropped on my airpump, why?
The diaphragm may need replacing, we recommended these are replaced annually. View diaphragm kits
Can the airpumps be used outside?
The airpumps are weather proof and can be used outside, they are not waterproof so do not situate in a position where they are likely to be flooded
I have replaced the diaphragm kit but my Airpump still does not work?
All the parts in the air pump can be replaced, if you have replaced the diaphragm kit and you pump still does not work it may be the electro-magnet. View electro-magnets
My airpump is running but no air is coming out?
The airpump is mounted to the base on rubber grommets, it is possible one of these has come out. Please refer to the manual and check the exploded diagram on page eleven, you will...
How do I clean the filter on my airpump?
To clean the filter on your airpump, follow the steps below or watch our YouTube video here:
Step 1: Loosen the screw on top.
Step 2: Remove the plastic filter cover.
Step 3: Take the filter out and clean it with clean water and dry it.
Step 4: Put it back and secure the fixing plate with the ...
How do I change the activating arm on my airpump?
To change the activating arm on your airpump, follow the steps below or watch our YouTube video here:
Step 1: Loosen the four screws around the cover and remove.
Step 2: Loosen the four screws around the coil cover and remove.
Step 3: Loosen the four screws around the diaphragm housing.
Step 4...
What are the dimensions of Airpumps?
To identify the size of Airpumps, please click from one of the below options:
To change the electromagnet on your airpump, follow the steps below or watch our YouTube video here:
My Airpump has a plug, can I cut the plug off?
You may find that your Airpump has a two pin plug - cutting the plug will not void your guarantee.
The plug can be cut off and wired into a safe, compliant, outdoor electrical system, with an RCD cut-off. If you are unsure, consult a qualified electrician.
What is the internal thread of the outlet on an Airpump 75?
The internal thread on the Airpump 75 outlet is M16.
