Flocell
Flocell XFM Fines Filters
FlocellXFM-FinesFilters

Flocell XFM Fines Filters

Flocell XFM Fines Filters are a range of pressurised filtration systems optimised specifically for use with patented Flocell XFM Fines Media. Both the media and filters are designed and manufactured exclusively by Flocell in the UK.

No maintenance is required, no hydraulic load, no clogging, no downtime and no media replacement required.

Designed and manufactured to exacting standards to deliver reliable and economical performance in a wide variety of applications.

For example:

- Post Bio-Filter
- Back-End Polishing
- Pre-Discharge
- Continuous Fish Tank Water Maintenance
- Integrated solutions post DAF / Lamella separators

Optimised To Use

Optimised For Flocell XFM Fines Media

Flocell XFM Fines Media has been specifically engineered to optimise the mechanical filtration performance of Flocell XFM Fines Filters. This patented filter media features a unique shape and profile that includes a series of fins around the outer surface to capture fines.


100 times more retention capacity than sand filters*

Independently tested by Cranfield University


Uses 50% less power than sand filters*

Only 12kW per day vs. 24kW per day


Uses 80% less water than sand filters*

1 clean per week vs. 1 backwash per day

*Compared to sand filters of the same size on a typical installation.


No maintenance required

No hydraulic load, no clogging, no downtime and no media replacement required


Fines filtration systems with patented filter media

Manufactured exclusively in the UK

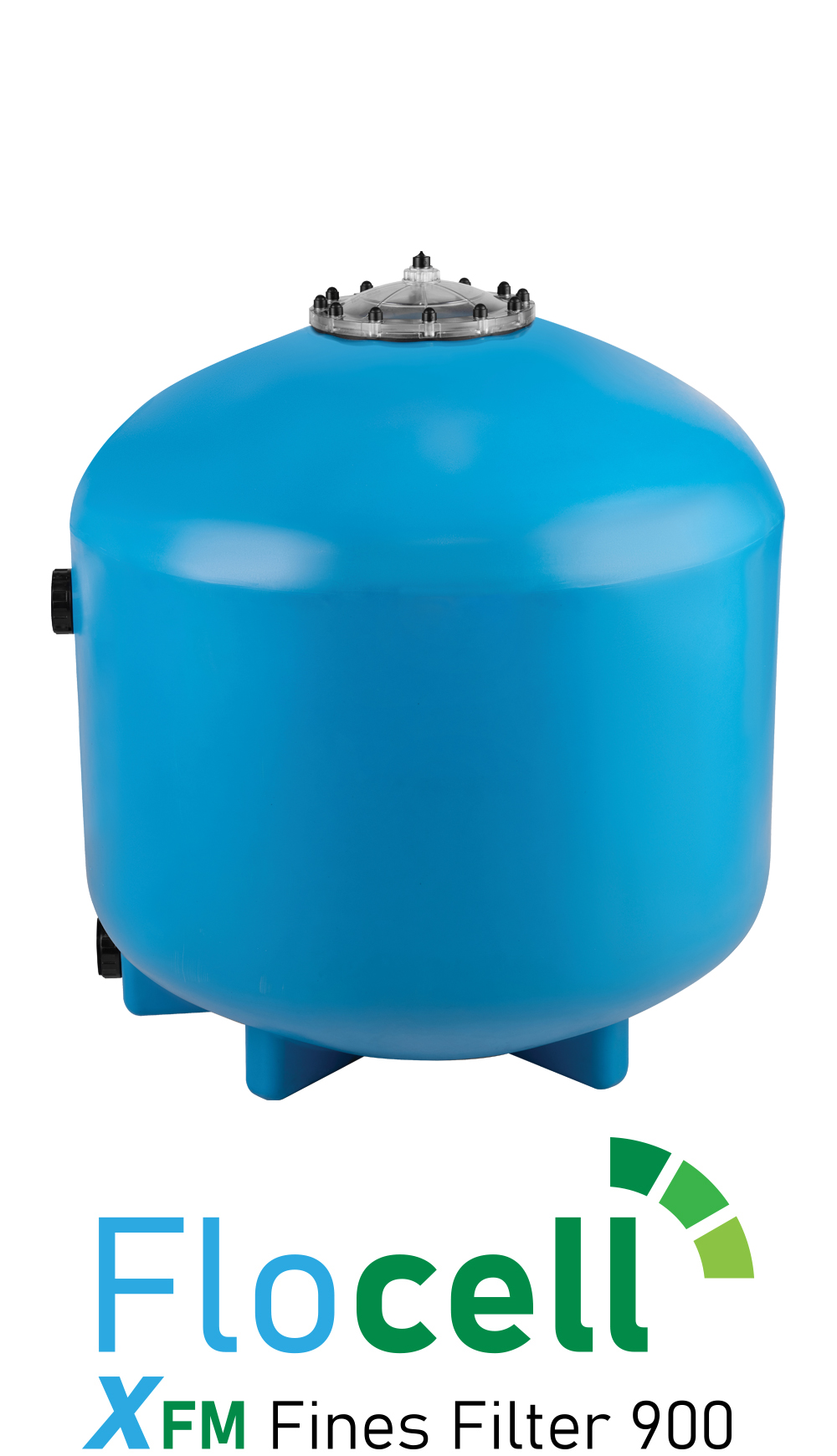

Flocell XFM Fines Filter 900

Diameter:900mm (36")
Height (Including Lid):1205mm
Filtration Area:0.64m2
XFM Fines Media Included:250 litres
Maximum Flow Rate:16m3/hr
Maximum Water Temperature:40oC
Maximum Ambient Temperature:50oC
Maximum Operation Pressure:2 Bar
Connection Size:63mm

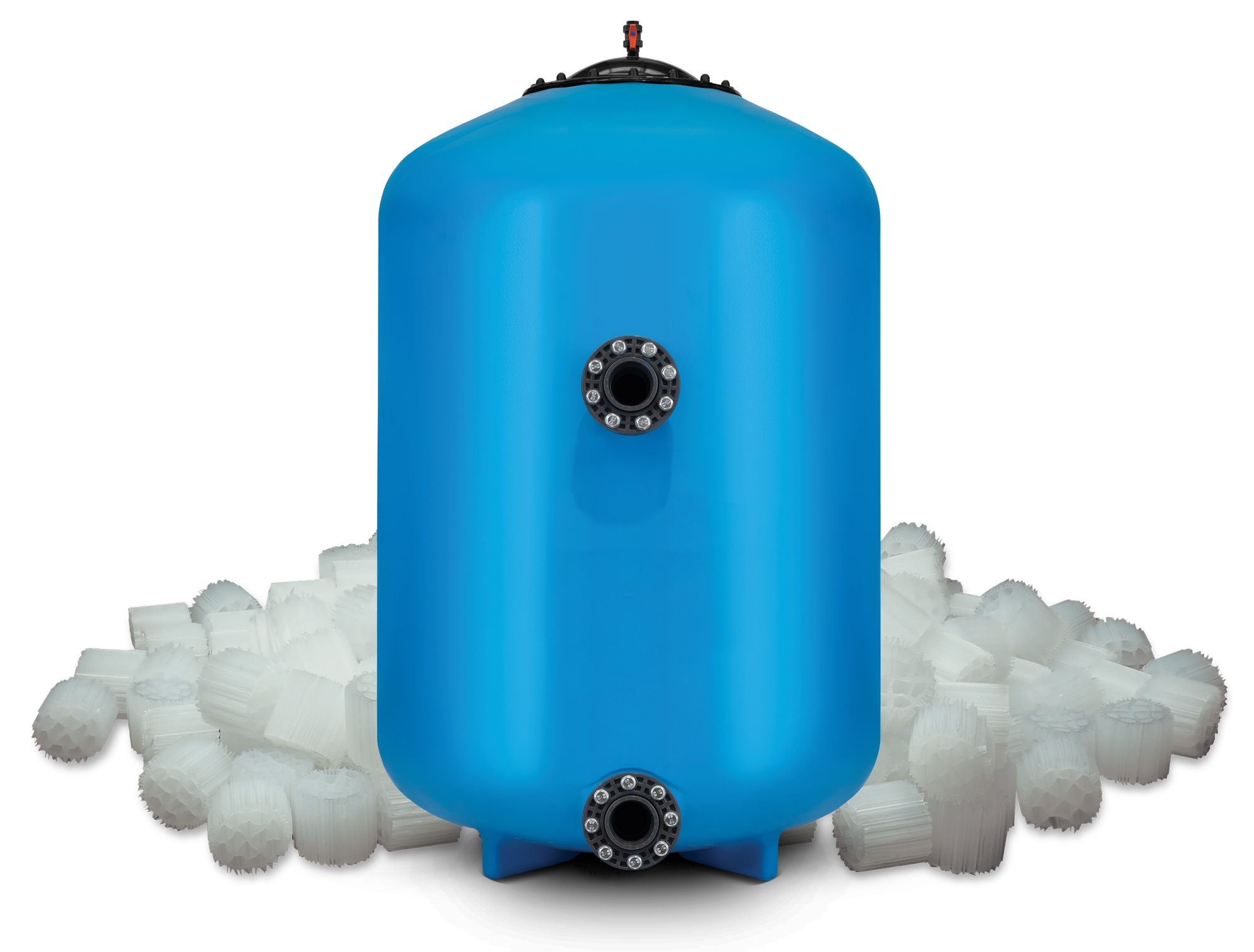

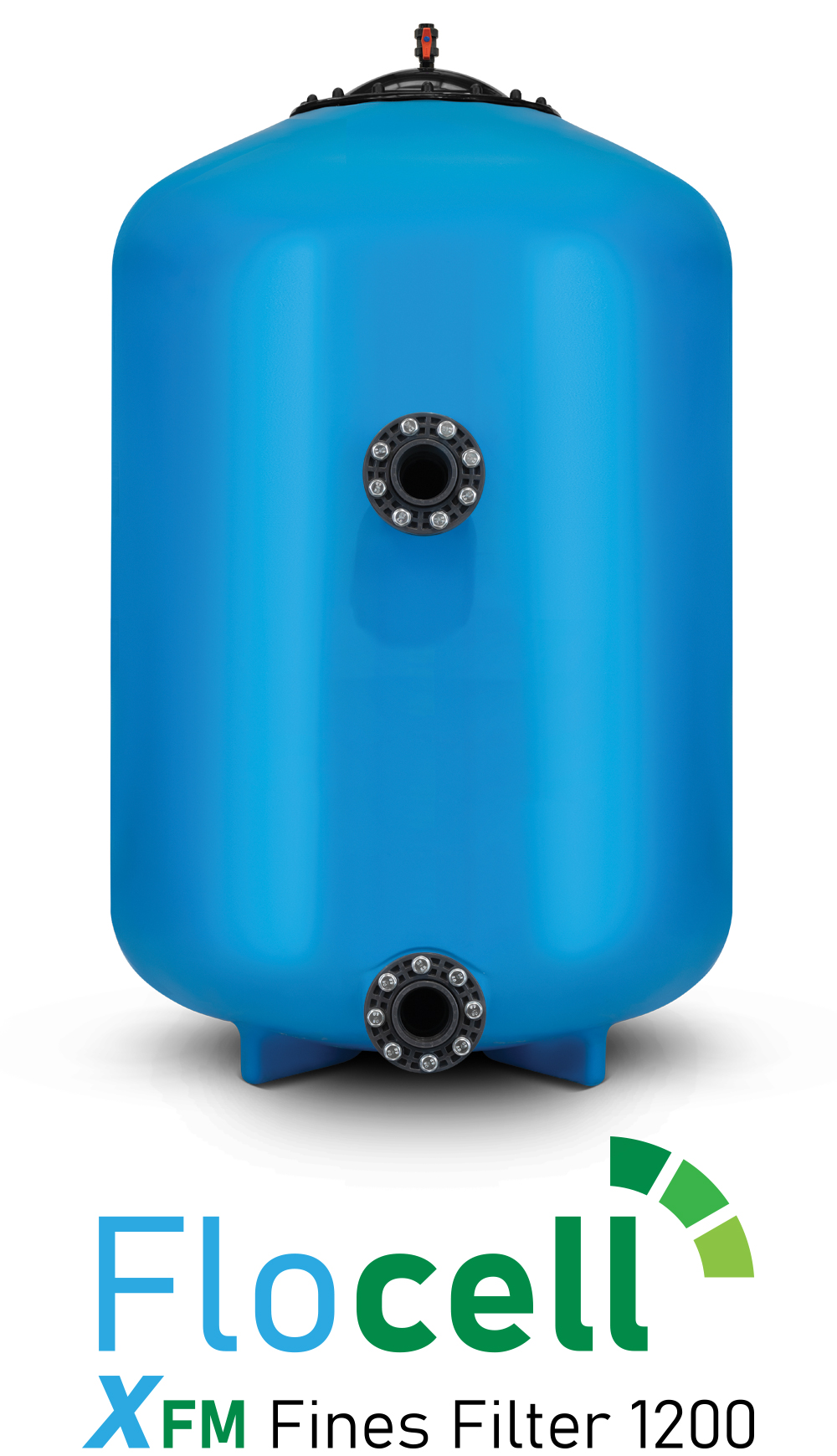

Flocell XFM Fines Filter 1200

Diameter:1200mm (48")
Height (Including Lid):2093mm
Filtration Area:1.12m2
XFM Fines Media Included:1200 litres
Maximum Flow Rate:20m3/hr
Maximum Water Temperature:40oC
Maximum Ambient Temperature:50oC
Maximum Operation Pressure:2 Bar
Connection Size:90mm





Specifications

ModelDiameterHeight
(Including Lid)
Filtration AreaXFM Media IncludedMax Flow RateMax Water TemperatureMax Ambient TemperatureMax Operation PressureConnection Size
Flocell XFM Fines Filter 900900mm
(36")
1205mm0.64m2250 litres16m3/hr40 Degrees C50 Degrees C2.0 Bar63mm
Flocell XFM Fines Filter 12001200mm
(48")
2093mm1.13m21200 litres20m3/hr40 Degrees C50 Degrees C2.0 Bar90mm

Simple Modular Solutions

Flocell XFM Fines Filters have been designed to be modular and conform with any flow rate required, making them suitable for a variety of applications.

When specifying multiple XFM Fines Filter 1200 for your system you benefit from more retention capacity,
less energy consumption and less water usage compared to using sand filters on the same set-up.

Twin Filter Configuration

When specifying multiple XFM Fines Filter 1200 for your system you benefit from more retention capacity, less energy consumption and less water usage compared to using sand filters on the same set-up.

Triple Filter Configuration

Easily install multiple XFM Fines Filter 1200 side by side within a relatively compact footprint, ideal for RAS systems.


Why our XFM Fines Media?

Flocell open-cell media has been designed to efficiently reduce water turbidity
and retain particulate without increasing the pressure within the filter or reducing the flow.

Turbidity Reduction Efficiency Test

The European Standard states that a minimum reduction in turbidity of 50% must be achieved in this test.
OCM Products Filtration Media has a turbidity reduction efficiency of 93% after 20 cycles.


Filtration Efficiency vs. Particle Size

This test define the efficiency with which particles of specified size are removed by the filter in one pass.
The retention capacity of our media was not reached during this testing.
