Overview
- Ultra compact, superior performance
- Aquatrance pumps specifically made for protein skimmers
- Easy maintenance
- Output designed for bubble-free outflow
- Quiet operation
- High quality hand-made acrylic construction
- Trusted by professionals and hobbyists
- Warranty:2 years*
- 2 years - Pump motor only
- 1 year - all other parts
Overview
Featuring a small footprint, the OCTO series Classic space saving skimmer. (Classic-S) is an in-sump protein skimmer ideal for aquariums with limited sump space. It is run by our very own AQ pump , encased in a solid acrylic body, can be easily disassembled for maintenance and does not require a feed pump as it draws water directly from the sump.

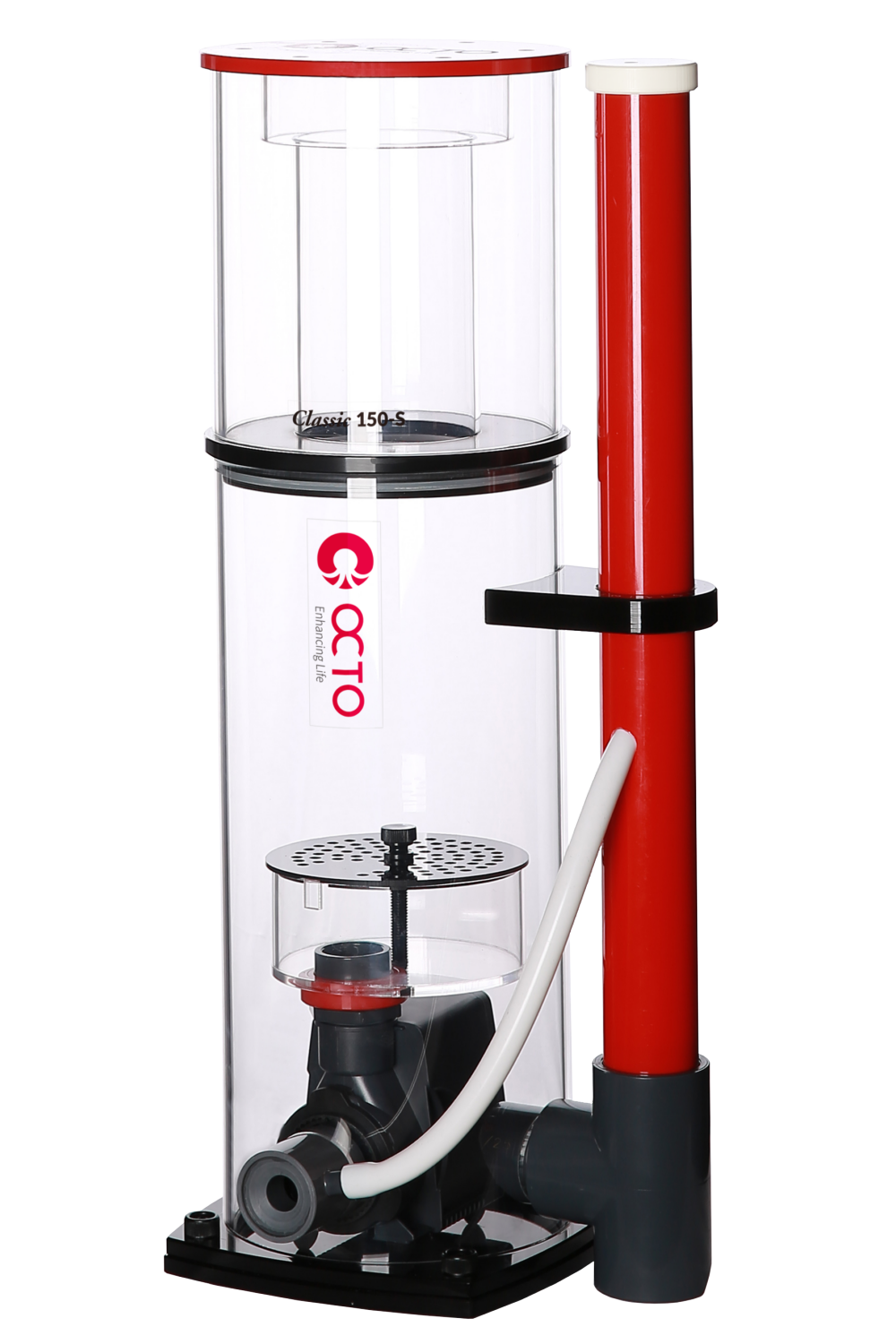

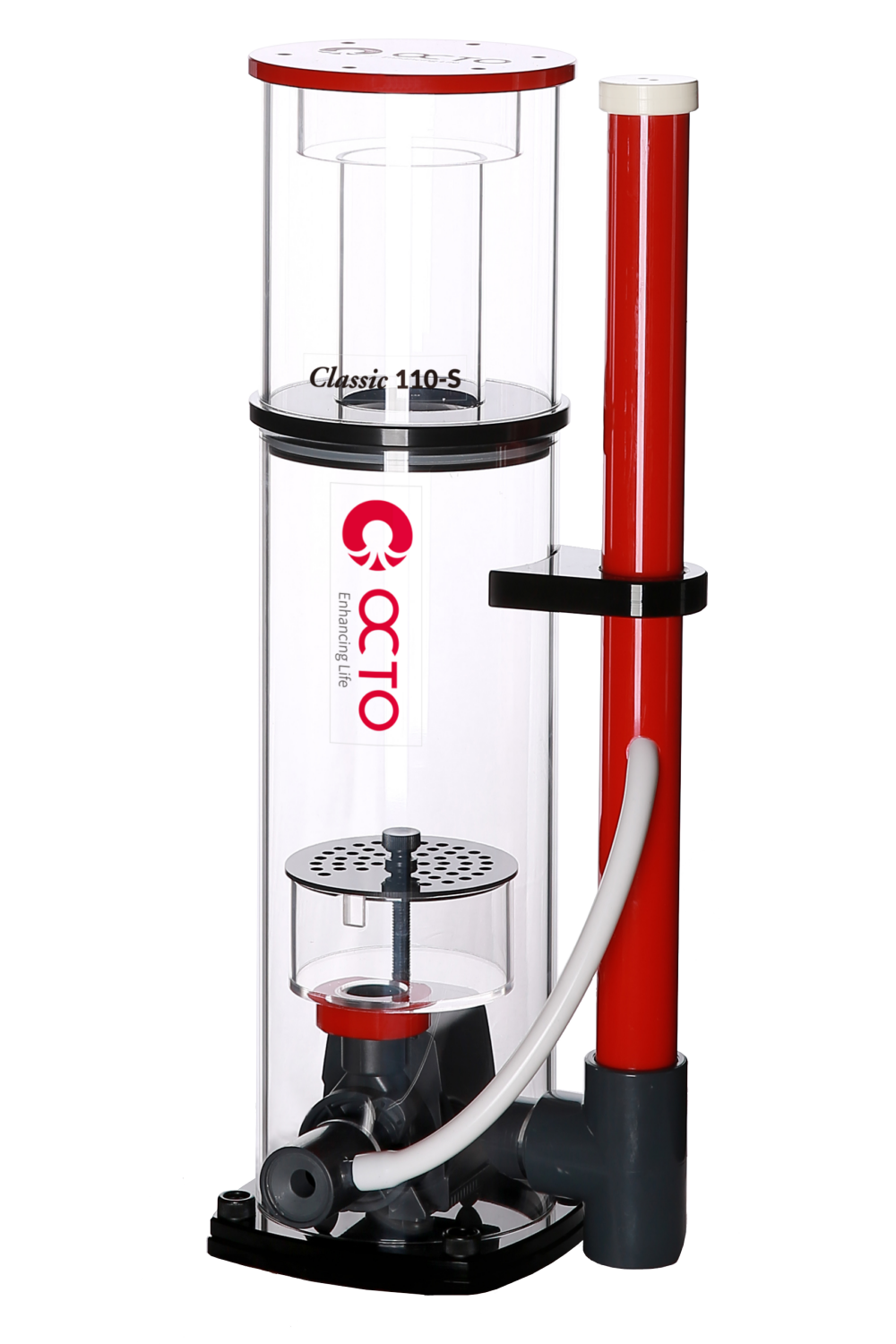

Available for 2 models – Classic 110-S and Classic 150-S features a straight body with a vented valve output .
Warranty:2 years* – pump motor only
2 years - Pump motor only
1 year - all other parts
What's included
| Article Code | Items | Classic 110-S | Classic 150-S | ||
|---|---|---|---|---|---|
| Model No | Qty | Model No | Qty | ||
| a | Top Cover | - | 1 | - | 1 |
| b | Collection Cup | - | 1 | - | 1 |
| c | O Ring | - | 1 | - | 1 |
| d | Skimmer Body | - | 1 | - | 1 |
| e | Silencer | - | 1 | - | 1 |
| f | Adjusting Pipe | - | 1 | - | 1 |
| g | O Ring | - | 1 | - | 1 |
| h | "T" Part | - | 1 | - | 1 |
| i | Screw | - | 1 | - | 1 |
| j | Bubble Plate | - | 1 | - | 1 |
| k | Bubble Skimming Chamber | - | 1 | - | 1 |
| l | Adapter | - | 1 | - | 1 |
| m | Aquatrance Skimmer Pump | AQ-1000S | 1 | AQ-2000S | 1 |
| n | Base of Skimmer | - | 1 | - | 1 |
| o | Screw | - | 1 | - | 1 |
| p | Air Hose | - | 1 | - | 1 |
| q | Venturi | - | 1 | - | 1 |
Skimmer
| Product | Wet Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | Tank Volume | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | W | mm | inch | mm | inch | mm | inch | mm | inch | L | Gal | |||||
| 50HZ | 60HZ | |||||||||||||||
| Classic 110-S | Wet | 8 | 9 | 120 | 4.7 | 60 | 2.4 | 200 | 155 | 7.9 | 6.1 | 485 | 19.10 | ø32mm (1″) | 500 | 109 |
| Classic 150-S | Wet | 17 | 18 | 150 | 5.9 | 80 | 3.2 | 240 | 185 | 9.5 | 7.3 | 530 | 20.90 | ø40mm (1-1/1/4″) | 800 | 176 |
Skimmer Pump
| Product | Model No. | Wet/Dry | Air Intake | Power | Maximum Flow Rate | Connection Size (outlet) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | ||||||||
| LPH | GPH | LPH | GPH | W | W | LPH | GPH | LPH | GPH | ||||
| Classic 110-S | AQ-1000S | Both | 420 | 92 | 454 | 100 | 8 | 9 | 350 | 77 | 350 | 77 | ø25(3/4″) |
| Classic 150-S | AQ-2000S | Both | 720 | 158 | 719 | 158 | 17 | 18 | 750 | 164 | 750 | 164 | ø25(3/4″) |
